Online PD monitoring and Arc Monitor for GIS using UHF sensors.

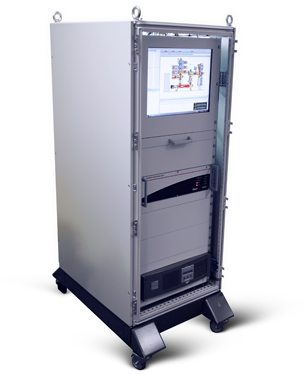

DMS PDMG-RH GIS Partial Discharge Monitor (IEC 61850)

The DMS PDMG‑RH is an IEC 61850‑certified, permanently installed monitor for gas‑insulated switchgear (GIS) that uses UHF sensors to capture partial discharge online. It streams data to Expert Software for automatic classification, trending, SCADA alarms, and—with the Arc Monitor add‑on—detection and localization of arc events across major GIS brands.
Возможности

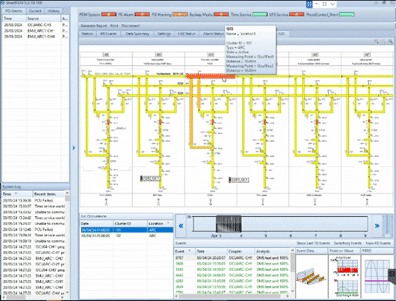

Arc Monitor (Arc Detection & Localization): software add‑on that uses existing UHF sensors to detect and locate arc events in GIS bays, helping re‑energize healthy sections faster.
Continuous, online PD monitoring with automatic fault classification.
High‑resolution UHF acquisition with per‑coupler filter and gain control.
Advanced noise gating to reduce interference and improve signal quality.
Real‑time alarms and data via digital and analog SCADA; remote access in Expert Software.
Trend analysis and reporting to support condition‑based maintenance.
Enhances reliability and safety; reduces unplanned outages and risk.
Retrofit‑friendly and compatible with most major GIS brands.
Supports integrated GIS health views (PD, arc events, gas density) on the same platform.
Helps extend asset life and delay costly replacements.
Applications
Permanent, online PD monitoring for GIS using UHF sensors.
Compatible with major GIS brands; ideal for high‑voltage substations, power plants, and critical industrial sites.
Real‑time alarms and data via digital and analog SCADA, enabling condition‑based maintenance.
Enables continuous, in‑service partial discharge testing with online monitoring and trend analysis.
Подробнее

Arc Detection & Localization for Partial Discharge Gen 3
Introduction: The electrical grid is the backbone of modern society, ensuring that electricity reaches ...
Подробнее
5 Мониторинг состояния заканчивается неудачей (и как их избежать)
Condition monitoring enables you to reduce the cost of performing preventive maintenance yet avoid the sudden ...
Подробнее
Qualitrol’s NEW Arc Detection & Localization
Pinpoint Flashovers in Seconds: Restore Power Faster A fixture in modern substations, Gas Insulated Switchgea...
ПодробнееВы также могли бы быть заинтересованы в

Программное обеспечение для мониторинга кондиционирования подстанции SmartSub
Multi-function condition based monitoring software of substation assets. Through a combination of Intelligent ...
Подробнее
Qualitrol 609 PDM Transformer & GIS PD Monitor
The 609 PDM system is an on-line partial discharge (PD) monitoring system for power transformers, based on ind...
Подробнее

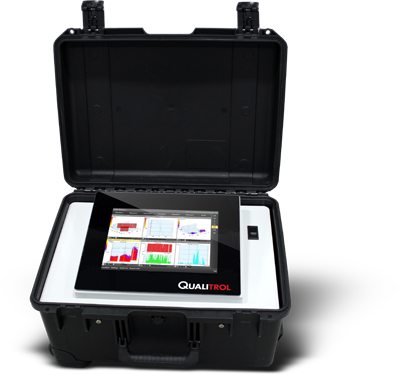

Qualitrol Портативный PDM Трансформатор и GIS Монитор частичной разрядки
A self sufficient and portable PDM system for rapid monitoring and analysis of partial discharge in gas insula...
Подробнее

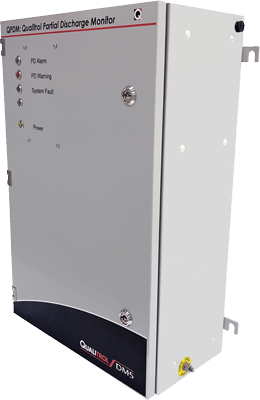

Qualitrol QPDM Transformer Partial Discharge Monitor
