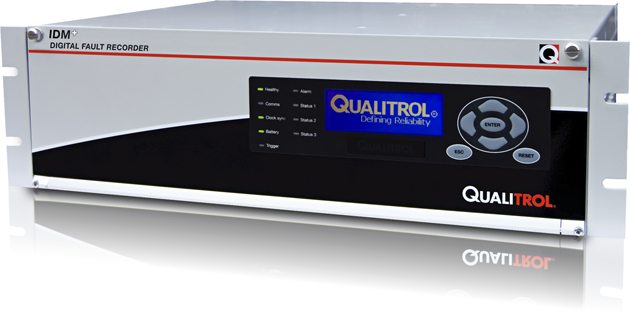

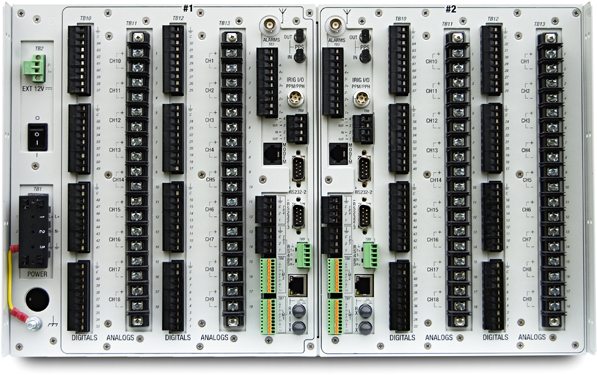

Qualitrol Multi-function Power System Monitor IDM+

Signal Fault Recording, Dynamic Disturbance Recording, Phase Measurement Unit, Traveling Wave, Fault Location, Sequence of Event Recording and Power Quality Class A Monitor - All in a Single Device

Продукция и Решения

Identify numerous power grid network problems with a single device. This multi-function, digital fault and disturbance monitoring device for the power grid helps operators identify what went wrong during a disturbance, why it happened and what can be done to ensure it doesn’t happen again.

The Qualitrol IDM+ offers advanced fault recording (DFC), dynamic disturbance recording (DDR), and sequence of event recording (SER) with options of phasor measurement unit (PMU) in compliance to the C37.118 2014 specifications. The Qualitrol IDM+ is the most accurate traveling wave fault location (TWS) and power quality (FQ) in compliance with EC 61000-4-30 Class A (Edition 2.0) in a single unit.

Возможности

  • Utilizes the most accurate measurement chain including sampling rate of 512 samples per cycle and analog resolution of 20 bits on current channels
  • Обнаружение повреждений в высоковольтных электрических сетях на основе метода бегущей волны с погрешностью ±60 метров (200 футов) (по заказу)
  • Полное твердотельное устройство и высокая надежность - все данные, хранящиеся на CompactFlash
  • Advanced iQ+ client-server multifunction master station software
  • Achieve cost effective, integrated, automated substation integration with IEC 61850 (MMS)
  • Усовершенствованный интерфейс оператора
  • Гибкий диапазон частоты выборки для аварийных записей и записей режимов энергосистемы

Варианты

  • Certified Class A PQ and fully compliant IEEE C37.118.2014 PMU
  • Локализация повреждений методом «бегущей волны»
  • Uninterruptible power supply

(An uninterruptible power supply can be provided for monitors in critical substations were the monitor should continue recording even when power has been lost).

Группа Created with Sketch. Applications

Comprehensive power system monitoring from a single multi-function device to maximize the utilization of the power network at a minimum cost. Ideal for use in substations and generating stations as the tool to download and process data to identify power quality and disturbances.
